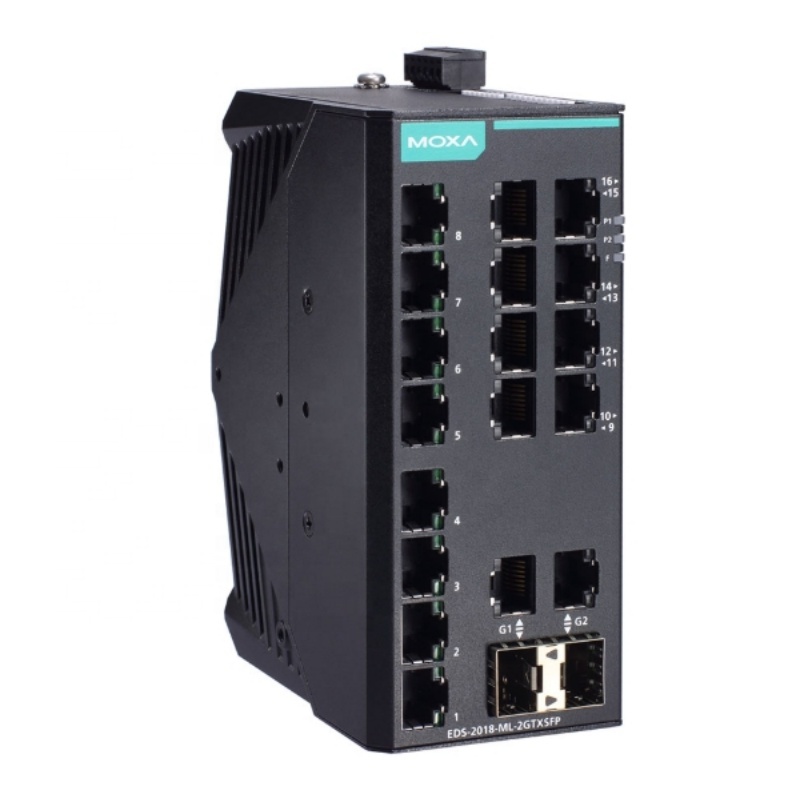

    EDS-2018-ML Series 16+2G Port Gigabit Unmanaged Ethernet Switches

    Ask Lasest Price
    Price : CN¥938.18/pieces >=2 pieces
    MOQ : 1pc
    • Product Details
    • Company Profile

    EDS-2018-ML Series 16+2G Port Gigabit Unmanaged Ethernet Switches

    New Original EDS-2018-ML Series 16+2G-port Gigabit unmanaged Ethernet switches

    Product Description

    Features and Benefits
    2 Gigabit uplinks with flexible interface design for high-bandwidth data aggregation
    QoS supported to process critical data in heavy traffic
    Relay output warning for power failure and port break alarm
    IP30-rated metal housing
    Redundant dual 12/24/48 VDC power inputs
    -40 to 75°C wide operating temperature range (-T models)
    Ethernet Interface
    10/100BaseT(X) Ports (RJ45 connector)16
    Auto MDI/MDI-X connection
    Full/Half duplex mode
    Auto negotiation speed
    Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+)2
    Auto negotiation speed
    Auto MDI/MDI-X connection
    Full/Half duplex mode
    StandardsIEEE 802.3 for 10BaseT
    IEEE 802.3u for 100BaseT(X)
    IEEE 802.3ab for 1000BaseT(X)
    IEEE 802.3z for 1000BaseX
    IEEE 802.3x for flow control
    IEEE 802.1p for Class of Service
    Switch properties
    MAC Table Size8 K
    Packet Buffer Size4 Mbits
    Processing TypeStore and Forward
    Power Parameters
    Connection1 removable 6-contact terminal block(s)
    Input Current0.277 A @ 24 VDC
    Input Voltage12/24/48 VDC
    Redundant dual inputs
    Operating Voltage9.6 to 60 VDC
    Overload Current ProtectionSupported
    Reverse Polarity ProtectionSupported
    Physical Characteristics
    HousingMetal
    IP RatingIP30
    Dimensions58 x 135 x 95 mm (2.28 x 5.31 x 3.74 in)
    Weight683 g (1.51 lb)
    InstallationDIN-rail mounting
    Wall mounting (with optional kit)
