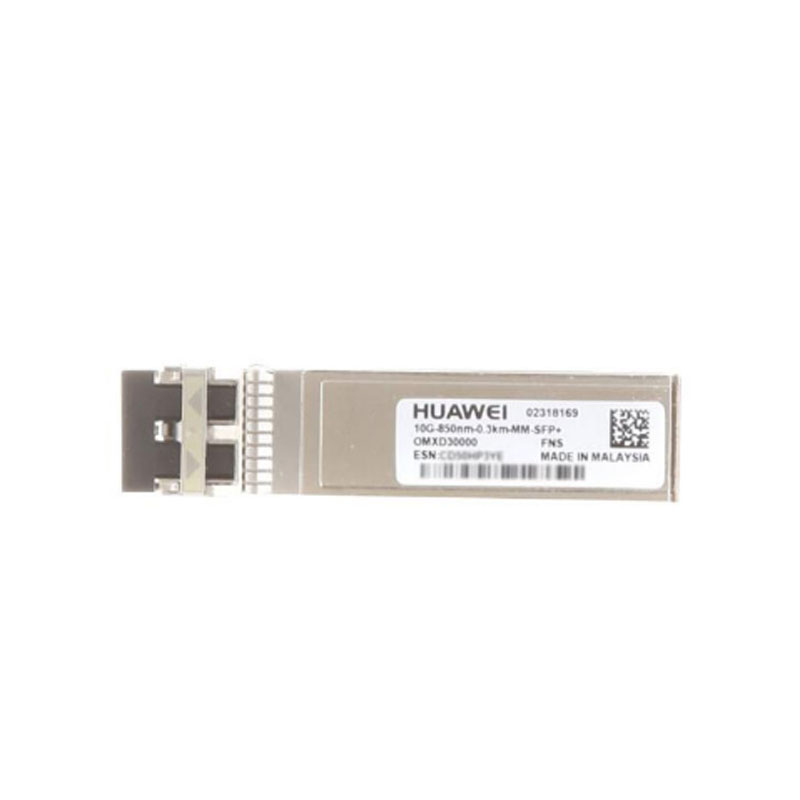

    HW Optical Transceiver module OMXD30000

    Ask Lasest Price
    Model Number : OMXD30000
    Price : CN¥109.10-254.55/pieces
    • Product Details
    • Company Profile

    HW Optical Transceiver module OMXD30000

    HW Optical Transceiver module OMXD30000
    HW Optical Transceiver module OMXD30000
    Specification
    Product Description
    Product Code
    OMXD30000
    Transceiver form factor
    eSFP
    Transmission speed
    GE
    Center wavelength (nm)
    850
    Standard compliance
    1000base-SX
    Connector type
    LC
    Applicable cable and maximum
    transmission distance
    · Multimode fiber (with modal bandwidth of 160 MHz*km and diameter of 62.5 μm): 0.22 km
    · Multimode fiber (OM1): 0.275 km
    · Multimode fiber (with modal bandwidth of 400 MHz*km and diameter of 50 μm): 0.5 km
    · Multimode fiber (OM2): 0.55 km
    · Multimode fiber (OM3): 1 km
    Transmit power (dBm)
    -9.5 to -2.5
    Maximum receiver sensitivity (dBm)
    -17.0
    Overload power (dBm)
    0
    Extinction ratio (dB)
    9
    Operating temperature
    0°C to 70°C (32°F to 158°F)
    Net Dimension(D x W x H mm)
    110 x 70 x 37
